PRODUCT HIGHLIGHTS

• External recording in up to 4k 60 fps on CFexpress Type B Media
• For use with the iPhone 15/16/17 Pro & Pro Max
• USB-C 3.2 Gen 2x2 up to 20 Gb/s (works with most phone cases); SD Recording Module up to 10 Gb/s
• Recessed connection port ensures stable, uninterrupted data transfer
• USB Bus-Powered no additional power source required
• Endures extreme temperatures and shock
• 3-Year Limited Warranty
• ¼”-20 Mount with male/female options for ARRI standard 3mm anti-twist pins
• Magnetic array compatible with MagSafe for quick connection
• 5” USB-C 3.2 Right Angle to Straight angle cable included
• The SD Module requires V90 cards that can sustain write speeds of 220 MB/s or faster to fully support the iPhone resolution and frame rates.
• Recording media must be formatted with APFS or exFAT prior to use.

PRODUCT DESCRIPTION

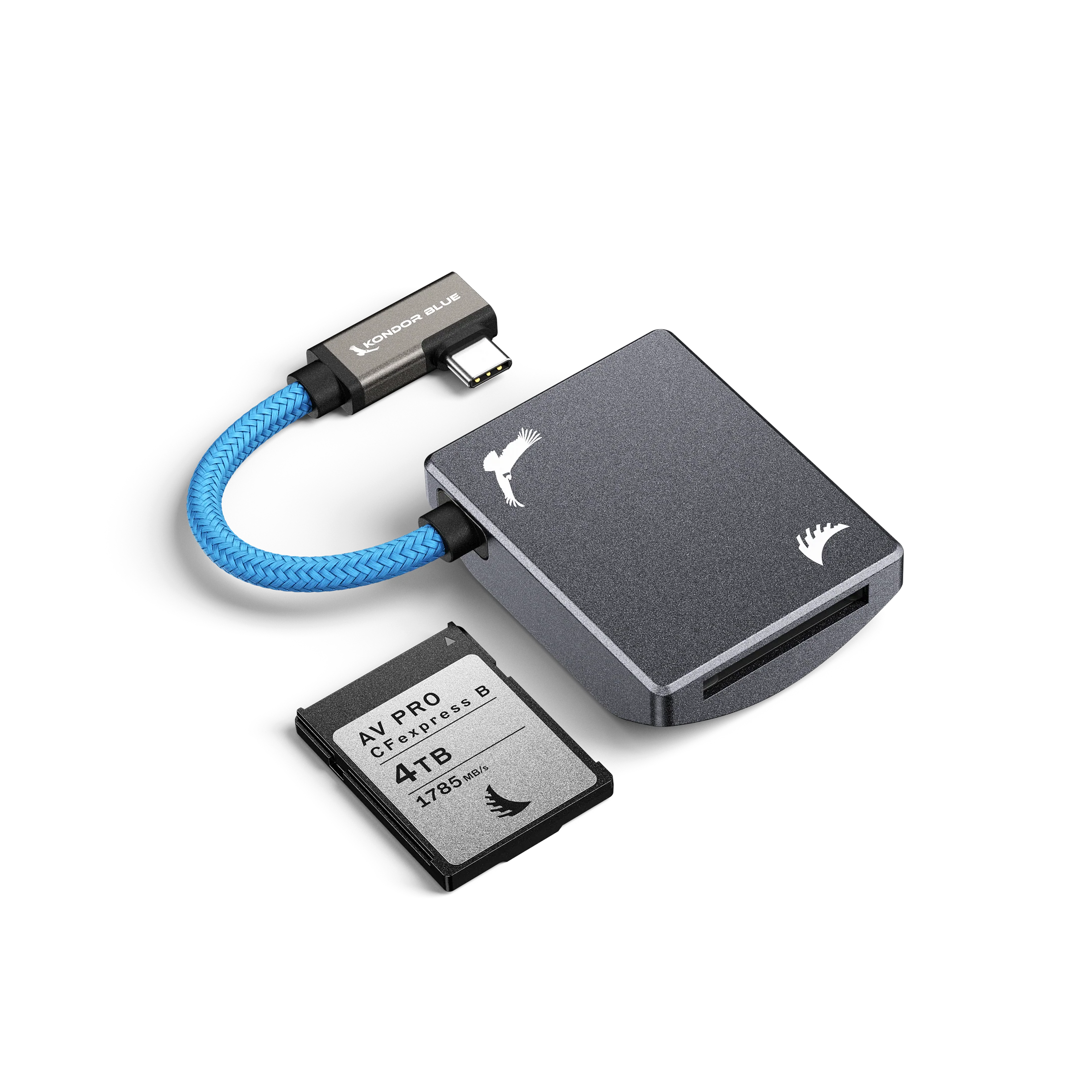

The CFexpress B and SD Recording Modules were engineered and designed by Angelbird and KONDOR BLUE in collaboration. Both KONDOR BLUE and Angelbird believe in the importance of developing quality products that serve creator's core needs. The iPhone 15 Pro & Pro Max have opened up a new world for content creators at every level with the unleashing of USB-C ProRes recording.

These Recording Modules are compatible with MagSafe and can be directly connected to the iPhone 15/16/17 Pro & Pro Max or with a MagSafe compatible case. The SD Module requires cards that are at least 220 MB/s or faster to fully support the iPhone resolution and frame rates.  The magnet connection is strong and the rubber pads provide additional friction to keep the module in place while avoiding any damage to the iPhone’s glass back. The module can also be mounted via ¼”-20 on the back and has male/female ARRI style 3mm anti-twist options.

Best of all, this incredible little module isn’t limited to just iPhone usage. It can also be used with any USB-C recording capable camera. The module also doubles as the card reader when offloading your footage. For rigging, the Cold Shoe ARRI Mount Adapter makes for a solid and simple way to attach the module to your camera.

Recording media is the final step in the acquisition funnel. Both Angelbird and KONDOR BLUE have a reputation that can be trusted to keep your media safe and secure. It’s backed by a solid 3-year warranty and world-class customer support. We can’t wait to see how you’re going to put the CFexpress B Recording Module to use!

Tech Specs

• 65g/2.3 oz (without card; 2.6 with)
• 45.5mm W x 59mm T x 16mm D

Recording Compatibility SD Recording Module



Recording Compatibility CF Express B Recording Module

Video Codec Color Encoding Frame Rate	Apple Camera App	Blackmagic Camera App
ProRes LOG 24p	X	X
ProRes LOG 25p	X	X
ProRes LOG 30p	X	X
ProRes LOG 60p	X	X
ProRes SDR 24p	X	X
ProRes SDR 25p	X	X
ProRes SDR 30p	X	X
ProRes SDR 60p	X	X
ProRes HDR 24p	X	X
ProRes HDR 25p	X	X
ProRes HDR 30p	X	X
ProRes HDR 60p	X	X
